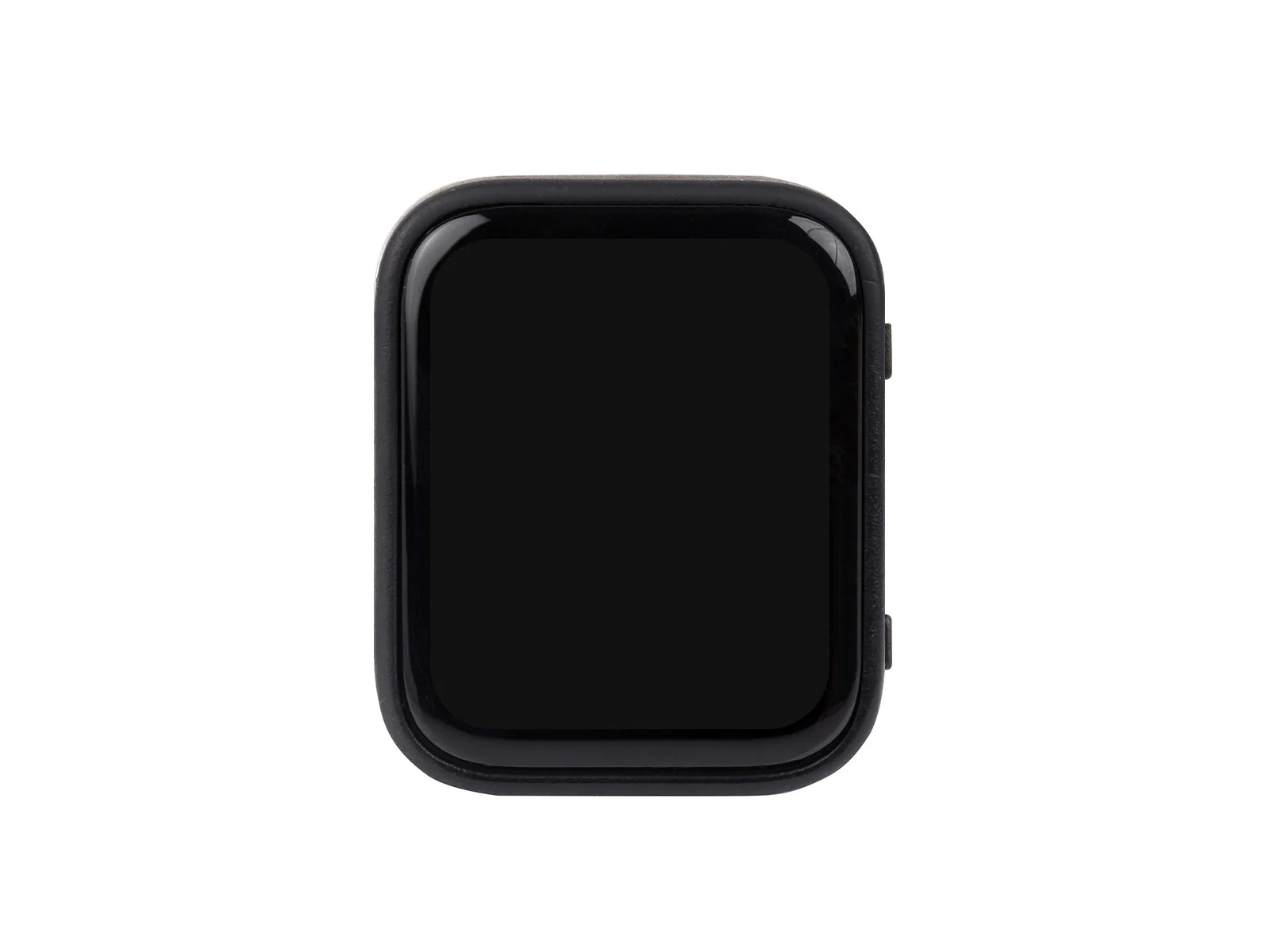

The RP2350 Touch AMOLED development board combines the powerful RP2350A microcontroller with a vibrant 1.8-inch AMOLED capacitive touch display. Featuring built-in motion sensors, audio capabilities, and expandable storage, it's an ideal platform for wearables, smart devices, and interactive prototypes.

Powered by Raspberry Pi's RP2350A with its unique dual-architecture design—dual ARM Cortex-M33 cores and dual Hazard3 RISC-V processors—the board offers flexible, high-performance computing at up to 150MHz.

Key Features

• 1.8" AMOLED Touch Display – 368 × 448 resolution, 16.7 million colours, capacitive touch
• RP2350A Microcontroller – Dual ARM Cortex-M33 + dual RISC-V cores @ 150MHz
• 6-Axis Motion Sensor – 3-axis accelerometer and 3-axis gyroscope
• Audio System – Onboard speaker, microphone, and low-power audio codec
• 520KB SRAM + 16MB Flash – Ample memory for complex applications
• TF Card Slot – Expandable storage for data logging and media
• RTC Chip – Real-time clock for time-based applications
• USB Drag-and-Drop Programming – Easy firmware updates

Specifications

• MCU: RP2350A (dual Cortex-M33 + dual RISC-V @ 150MHz)
• SRAM: 520KB
• Flash: 16MB onboard
• Display: 1.8" AMOLED, 368 × 448, capacitive touch
• Sensors: 6-axis IMU (accelerometer + gyroscope), temperature
• Audio: Speaker, microphone, audio codec
• Interface: QSPI, USB 1.1, GPIO
• Power: USB or optional 3.7V lithium battery
• Weight: 9g

Development Support

• C/C++
• MicroPython
• Arduino IDE

Ideal For

• Wearable device development
• Smart home gadgets
• Interactive prototypes
• Motion-sensing applications

Resources

• RP2350 Touch AMOLED Wiki
