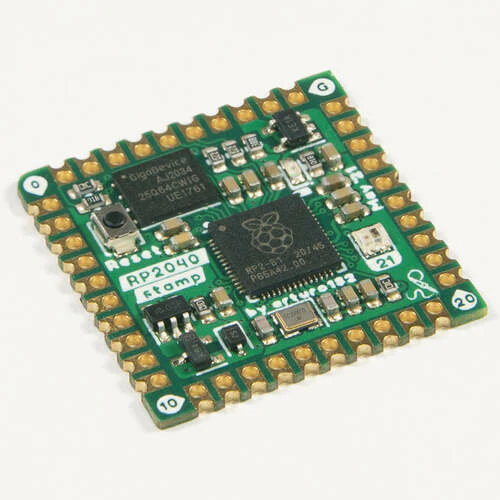

The RP2040 Stamp packs the full power of the Raspberry Pi RP2040 into a tiny 1×1 inch module designed for embedding in your own PCB designs. With castellated edges at 2mm pitch, it's easy to hand-solder onto your custom boards—no reflow oven required.

Beyond the RP2040 chip, this module integrates 8MB of flash, a 500mA voltage regulator, LiPo battery charging, and even a Neopixel LED—everything you need for a complete embedded system in a compact package.

Key Features

• Compact Form Factor – Just 25×25mm (1×1 inch)
• Hand-Solderable – Castellated edges with 2mm pitch
• 8MB Flash – Four times the storage of a standard Pico
• All 30 GPIOs Exposed – Full access to the RP2040's I/O
• LiPo Charging – Built-in charge management with LED indicator
• Onboard Neopixel – RGB LED for status indication
• 500mA LDO – 3.3V regulator for powering external components

Specifications

• Processor – Dual-core Arm Cortex-M0+ @ 133MHz
• Memory – 264KB SRAM, 8MB Flash
• GPIO – 30 pins exposed
• Interfaces – 2× UART, 2× SPI, 2× I2C, 16× PWM, USB
• Crystal – 12MHz oscillator
• Dimensions – 25 × 25mm

Pre-loaded Software

• CircuitPython with UF2 bootloader

Ideal For

• Custom PCB designs requiring RP2040
• Compact embedded systems
• Battery-powered wearables and portables
• Prototyping production-ready designs
