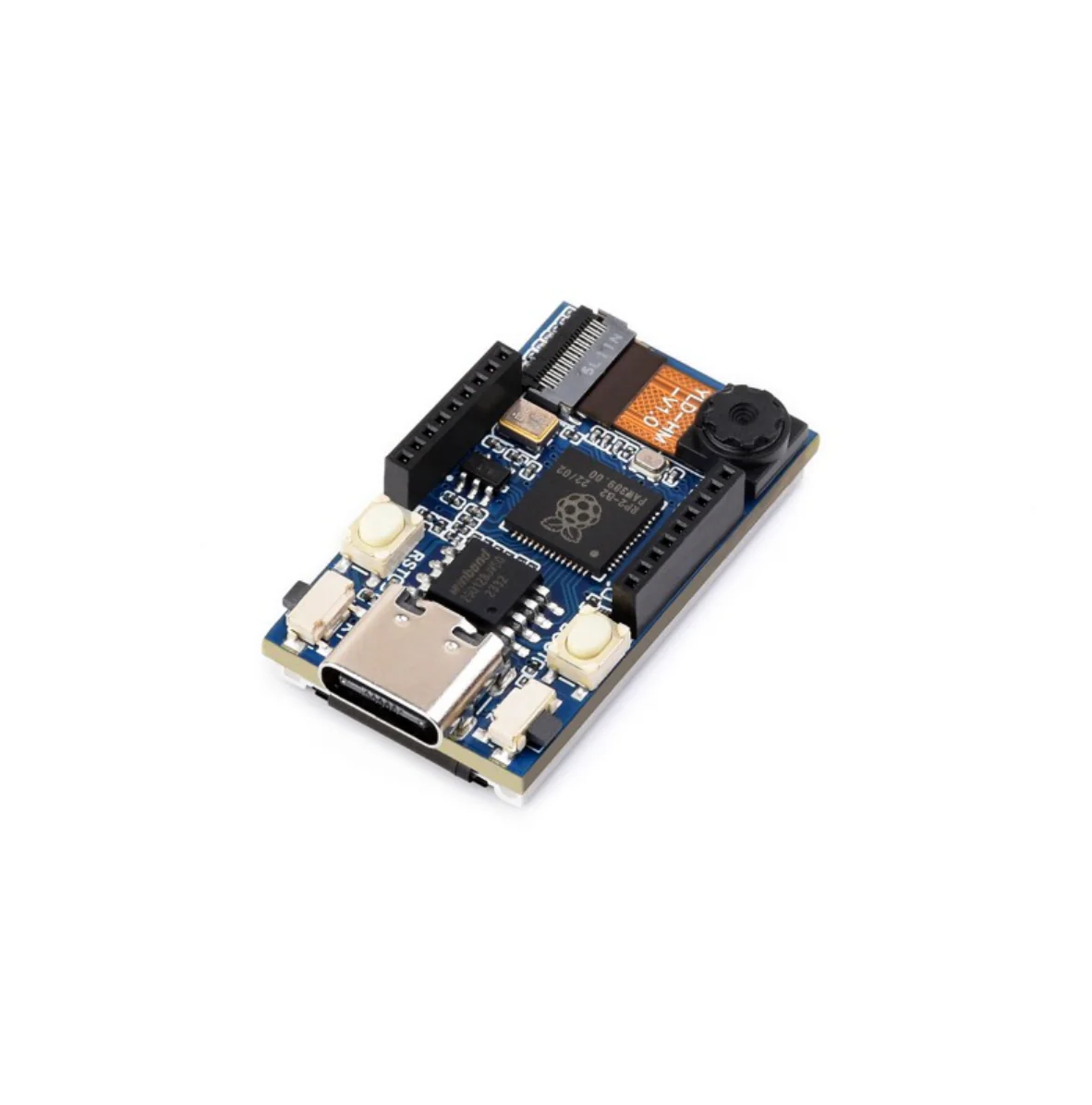

The PICO-CAM-A is an RP2040-based camera development board featuring an onboard HM01B0 grayscale camera and 1.14-inch IPS LCD display. This compact board is ideal for image capture applications, computer vision experiments, and embedded display projects.

Powered by the dual-core ARM Cortex-M0+ RP2040 running at up to 133MHz, with 264KB SRAM and 16MB flash, the board supports drag-and-drop programming via USB and development in C/C++.

Key Features

• RP2040 Microcontroller – Dual-core ARM Cortex-M0+ @ 133MHz
• HM01B0 Grayscale Camera – Onboard camera for image capture

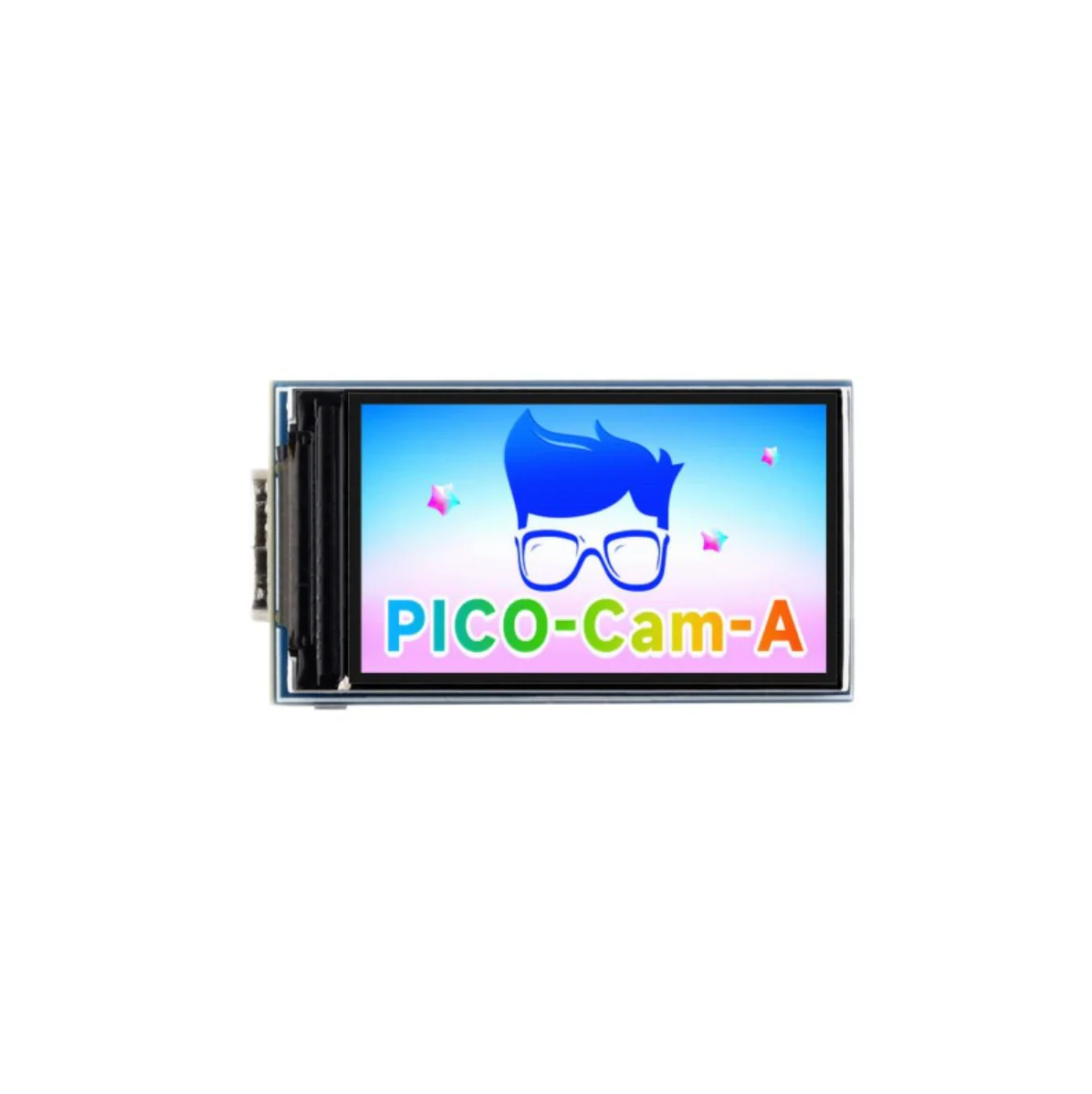

• 1.14" IPS LCD Display – 240 × 135 resolution, 65K colours
• 16MB Flash Storage – W25Q128 NOR-Flash onboard
• USB-C Connectivity – Modern connector with device and host support
• 13 GPIO Pins – Multi-function pins for flexible development
• 8 PIO State Machines – Custom peripheral support
• Low-Power Modes – Sleep and dormant modes for energy efficiency

Specifications

• Processor: Dual-core ARM Cortex-M0+ @ 133MHz
• SRAM: 264KB
• Flash: 16MB (W25Q128)
• Camera: HM01B0 grayscale
• Display: 1.14" IPS, 240 × 135, 65K colours
• GPIO: 13 multi-function pins
• USB: Type-C (USB 1.1, device/host)

Onboard Components

• USB Type-C connector
• User button, BOOT button, RESET button
• HM01B0 grayscale camera
• 1.14" IPS LCD display
• Temperature sensor

Ideal For

• Image capture and processing experiments
• Computer vision learning
• Embedded display projects
• IoT devices with visual feedback

Resources

• PICO-CAM-A Wiki & Documentation
