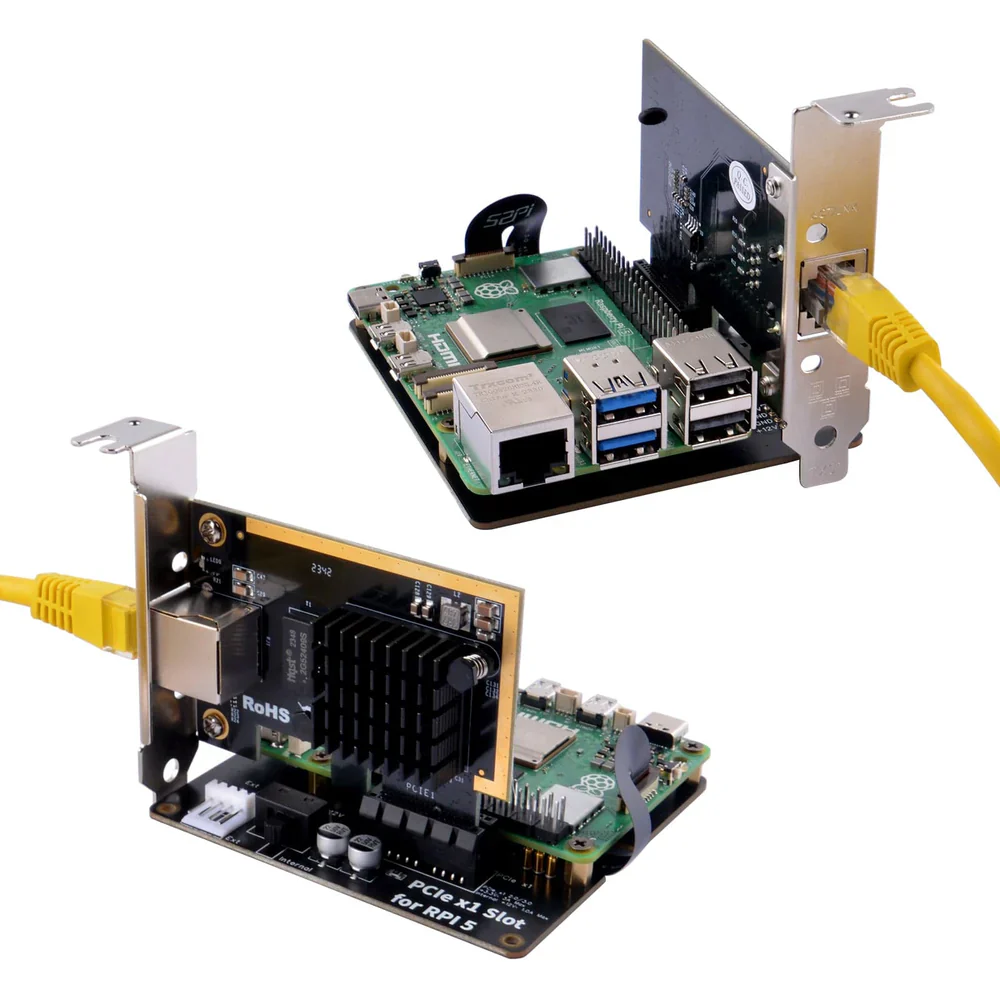

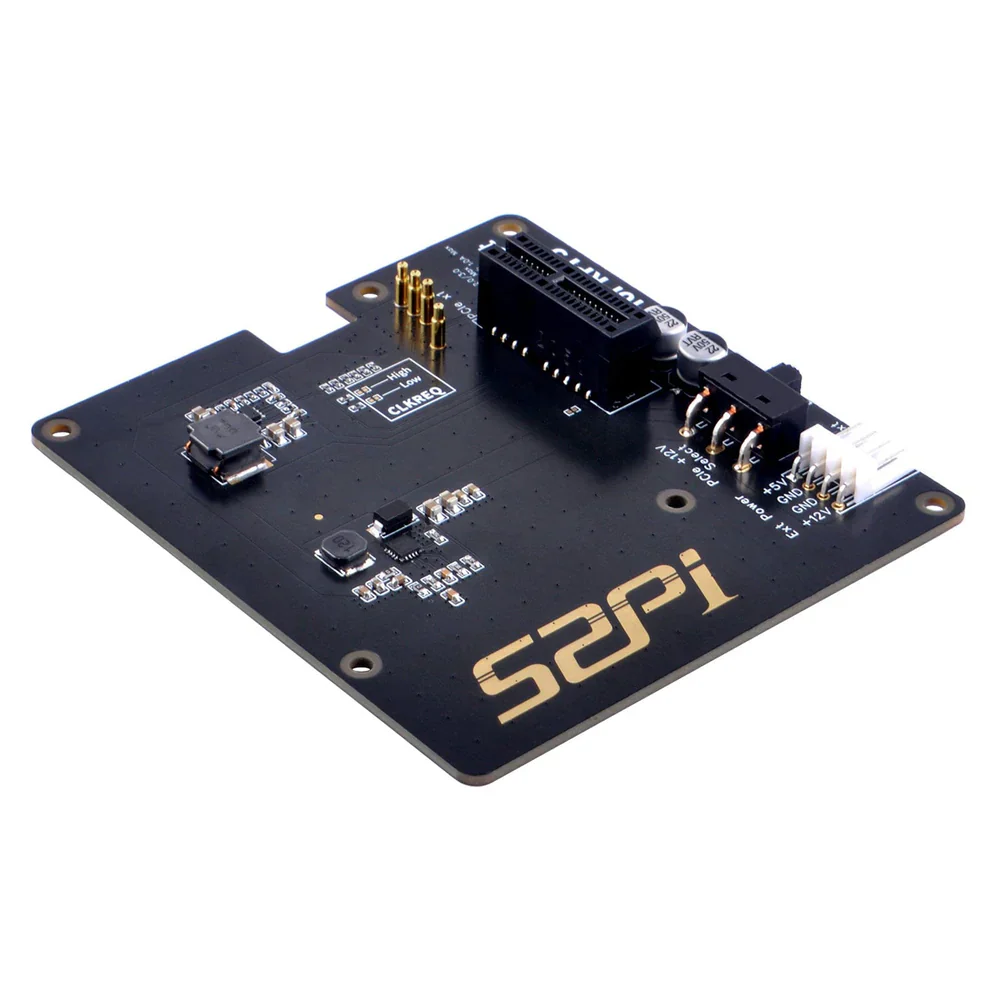

The P02 PCIe Slot baseboard converts your Raspberry Pi 5's PCIe FFC connector into a standard PCIe x1 slot. This enables connection of standard PCIe expansion cards, opening up possibilities for networking, capture cards, and other PCIe devices.

Features an open-ended slot design compatible with x1, x2, x4, x8, and x16 cards (electrically x1). Built-in 12V power supply provides up to 1A for most cards, with an external power header for high-power devices.

Key Features

• Standard PCIe Slot – Open-ended design fits x1 to x16 cards
• PCIe Gen 2/3 – Supports both standards
• Built-in Power – 12V/1A and 3.3V/3A for PCIe cards
• External Power Option – Header for high-power cards
• Gold-Plated PCB – Superior electrical performance
• Short Trace Routing – Optimised for PCIe 3.0 signal integrity

Specifications

• Slot Power: +12V/1A, +3.3V/3A
• Dimensions: 85 × 80 mm
• Compatibility: Raspberry Pi 5

Package Contents

• 1× P02 PCIe Slot Baseboard
• 2× Custom PCIe FFC Cables
• 4× M2.5 × 6mm Copper Standoffs
• 8× M2.5 × 4mm Flat Head Screws
• 1× Screwdriver
