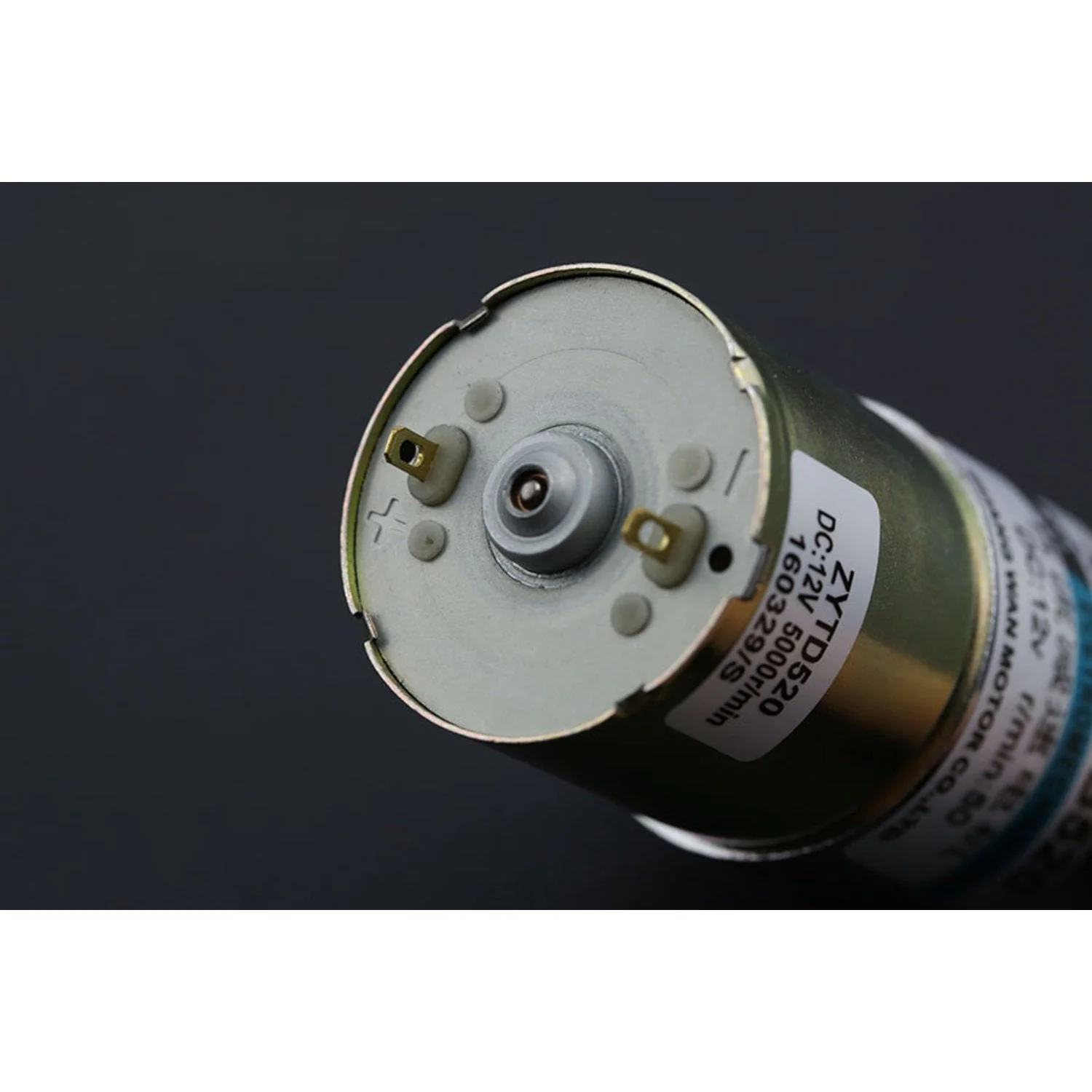

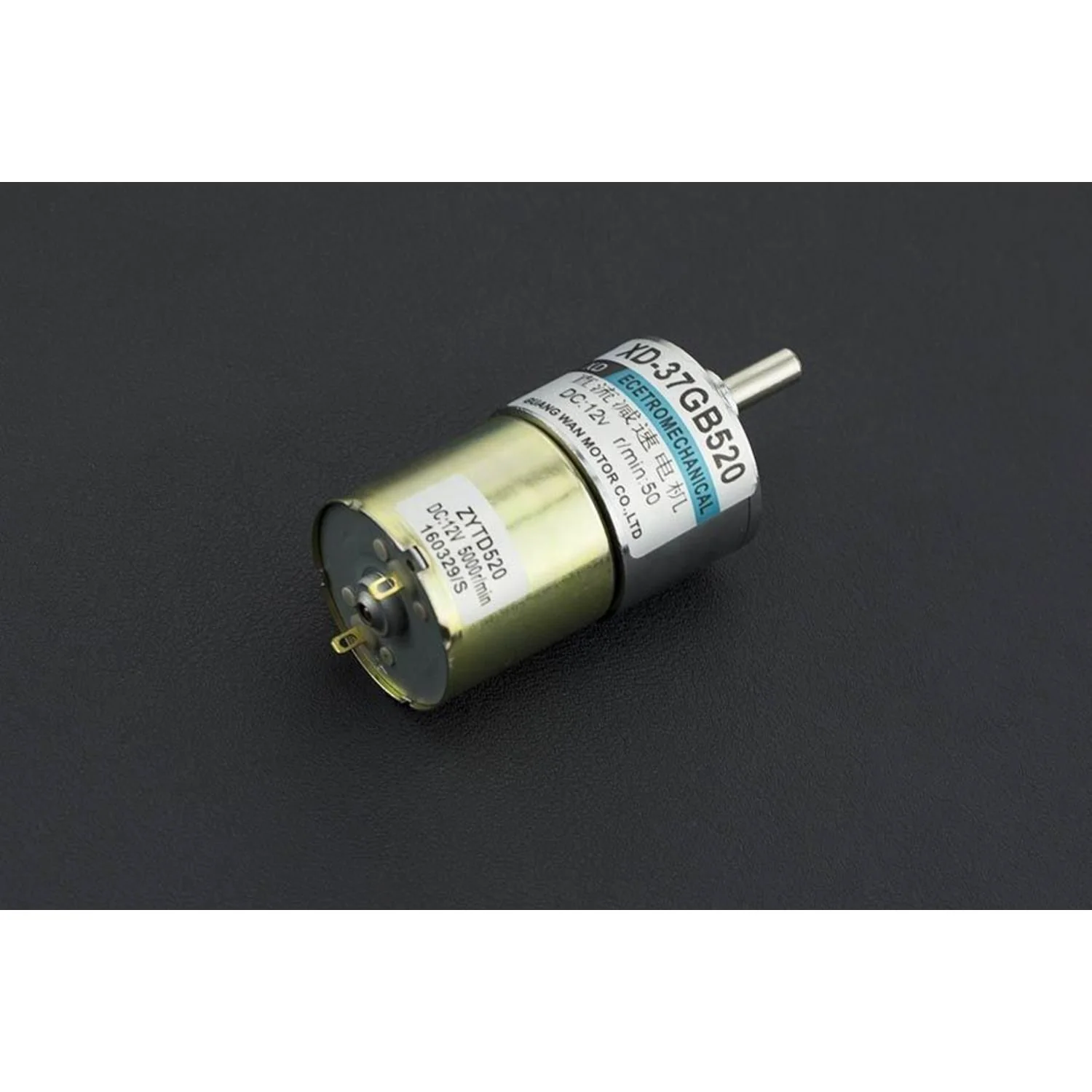

A high-torque metal DC geared motor with 100:1 reduction ratio, delivering up to 50 kg·cm of stall torque. Built with pure copper coils and an all-metal gearbox for durability and reliability in demanding applications.

The compact design and D-shaped 6mm output shaft make it easy to integrate into robots, automation projects, and mechanical systems requiring strong, controlled motion.

Key Features

• High Torque – Up to 50 kg·cm stall torque
• Metal Gearbox – 100:1 reduction ratio for durability
• Pure Copper Coils – Efficient power transfer
• D-Shaft Output – 6mm diameter for easy mounting
• Compact Size – High power density

Ideal For

• Robotics and automation
• Conveyor systems
• Gate and door mechanisms
• Pan/tilt systems
• Heavy-duty mechanical projects

Specifications

• Rated Voltage: 12V DC
• Gear Ratio: 100:1
• No-Load Speed: 50 RPM @ 12V
• Rated Speed: 45 RPM @ 12V
• No-Load Current: 0.17A
• Rated Current: 0.68A
• Rated Torque: 9 kg·cm
• Stall Torque: 50 kg·cm
• Stall Current: 2.19A
• Power: 5W
• Output Shaft: 6mm D-shaft
• Weight: 210g

Package Contents

• 1× Metal DC geared motor (12V 50RPM)
