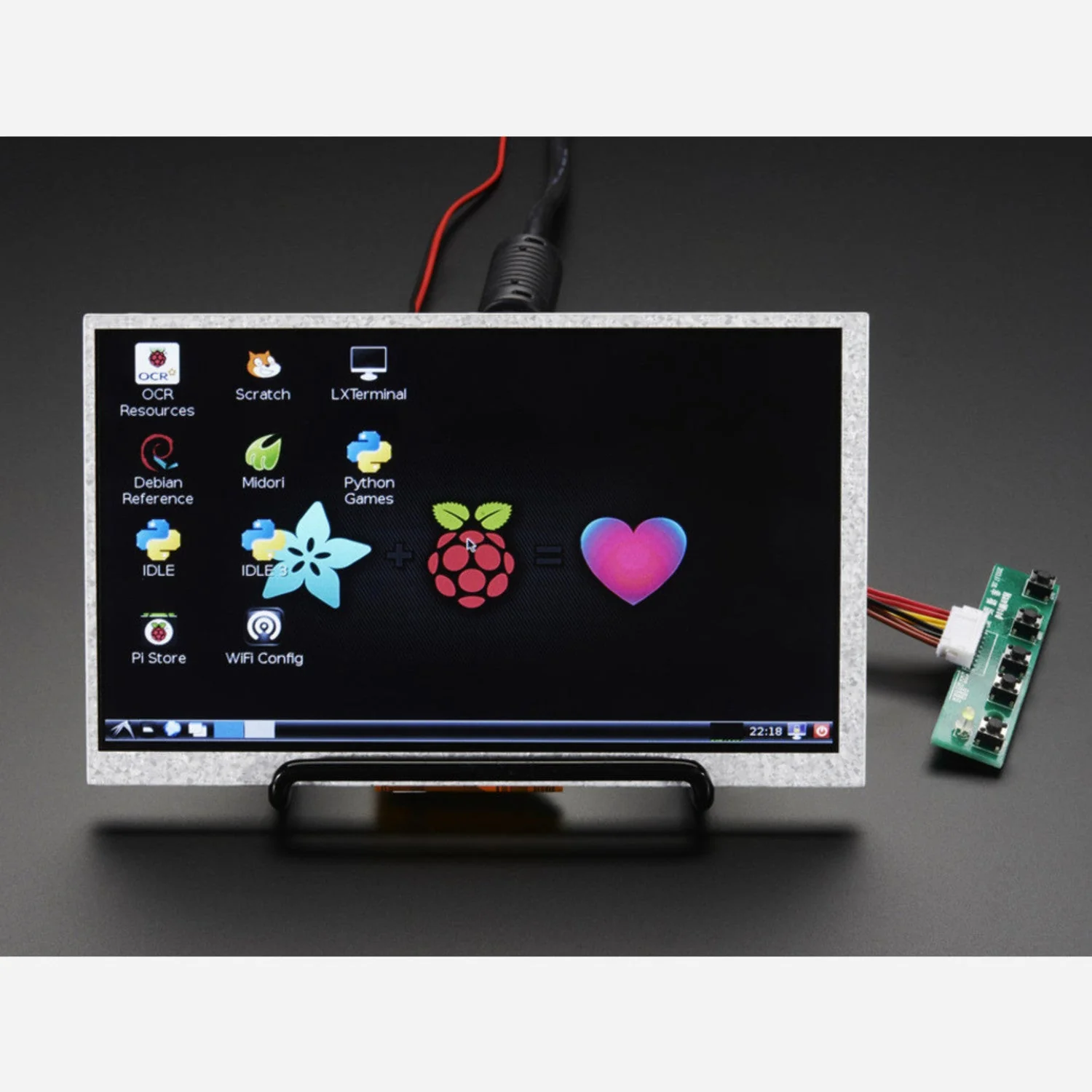

Add a compact 7-inch display to your Raspberry Pi or any HDMI-equipped device with this plug-and-play screen. The 800×480 TFT panel connects via standard HDMI and powers from USB – no complex wiring or driver installation required.

The included mini driver board features auto-detection for HDMI input and a wired control panel for adjusting brightness, contrast, and colour settings through the onboard menu system.

Key Features

• 7" TFT Display – 800×480 WVGA resolution
• HDMI Input – Standard connection, auto-detected
• USB Powered – 5V, 500mA required
• Mini Driver Board – Compact and easy to mount
• OSD Controls – Wired button panel for settings
• Plug and Play – Works with any HDMI source

Specifications

• Screen Size – 7 inches diagonal
• Resolution – 800 × 480 pixels
• Panel Type – TFT (best viewed directly)
• Input – HDMI
• Power – 5V USB (500mA)
• Weight – 274g

Compatibility

• Raspberry Pi (all models)
• BeagleBone Black
• Any device with HDMI output

Ideal For

• Portable Pi projects
• Embedded displays
• Information kiosks
• Custom enclosures

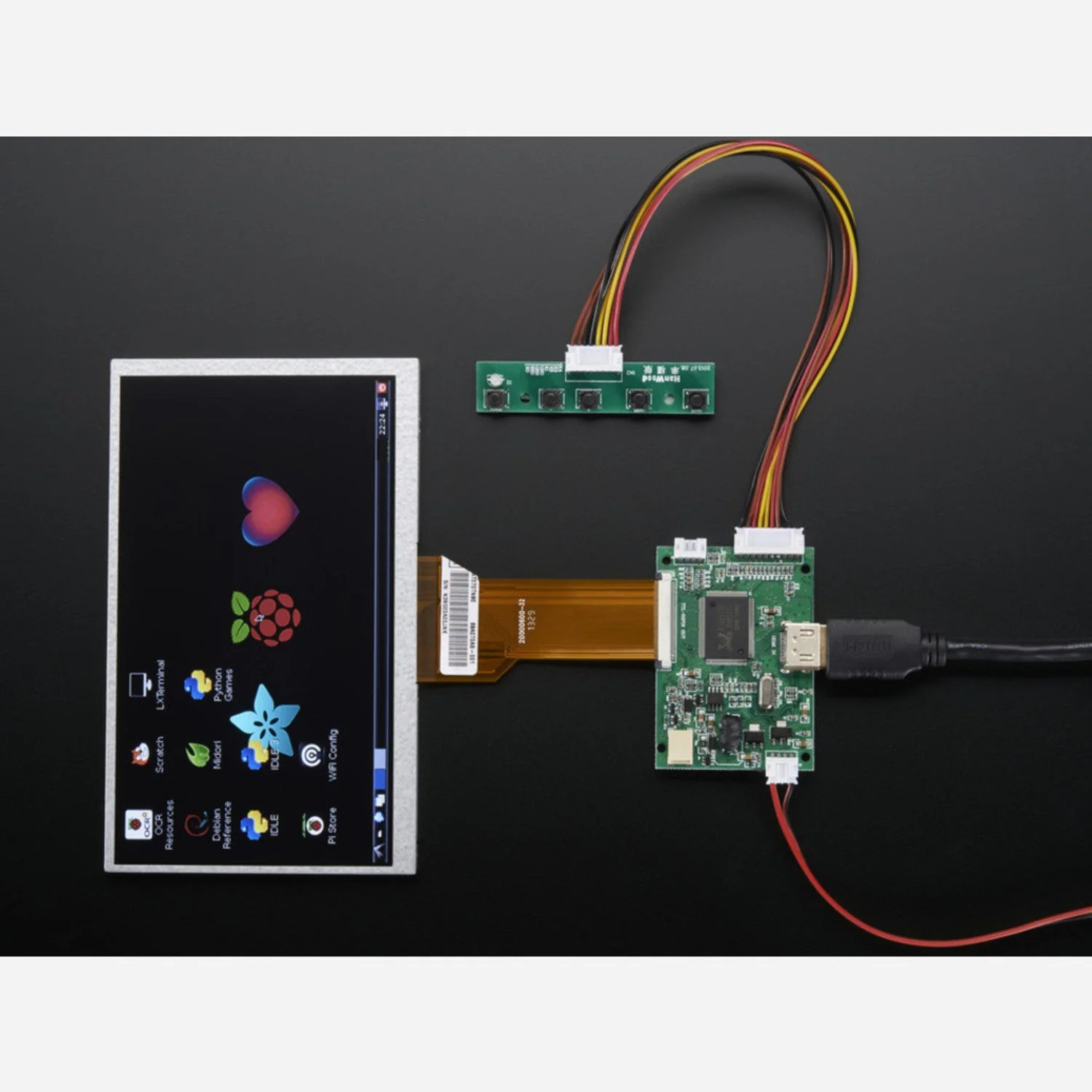

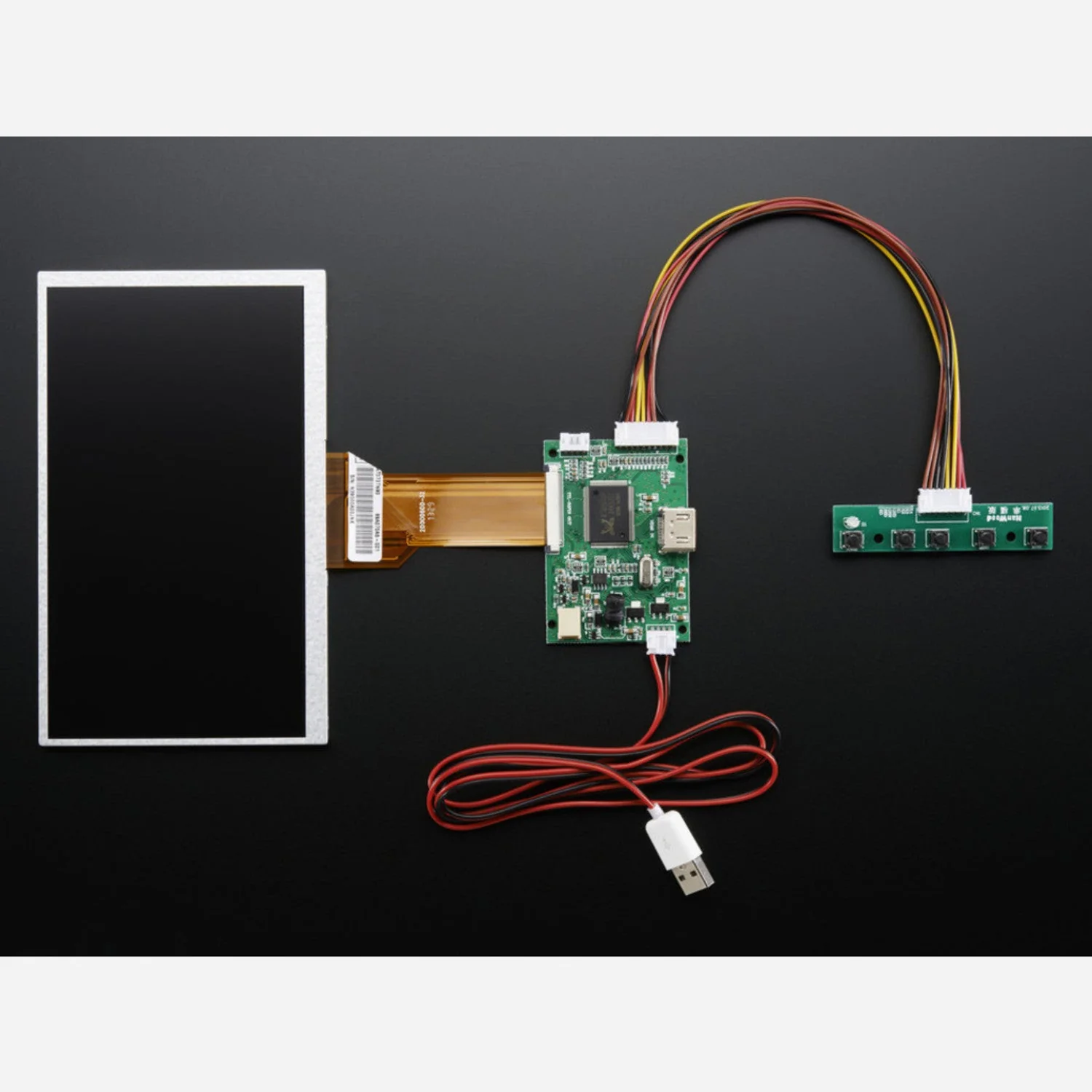

Package Contents

• 1× 7" TFT display panel
• 1× Mini HDMI driver board
• 1× Wired control panel
